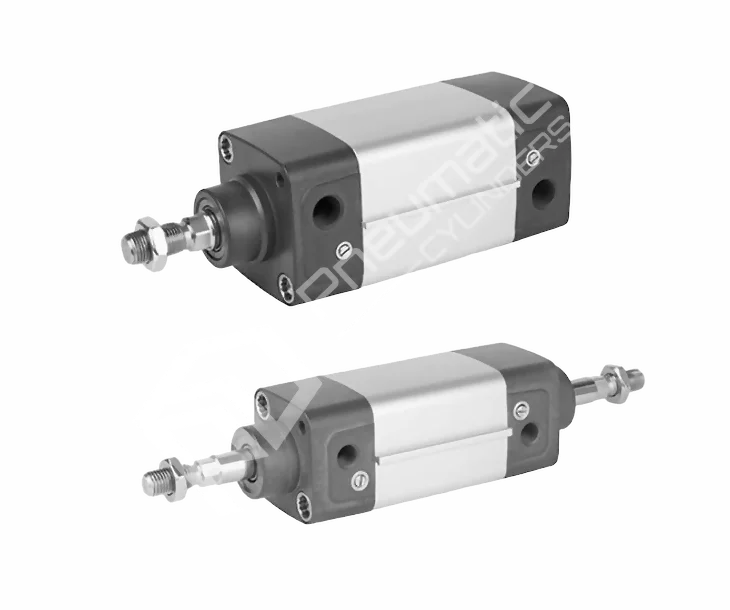

Pneumatic Standard Type Cylinders CCL-IS Series

CCL-IS Standard Type Cylinders are ISO 15552 cylinders designed with a focus on cleanliness and efficiency, making them ideal for various applications, including packaging in the food industry. These cylinders feature practical sensor mountings and a clean design, ensuring easy cleaning and low maintenance cycles. They are known for their hygienic protective caps, anodized surfaces, and approval for food applications. With a range of available sizes, these cylinders offer versatility and compliance with ISO standards, making them a reliable choice for industries requiring precision and cleanliness.

Key Features

Key features and benefits of CCL-IS Standard Type Cylinders.
1

Key Features

The cylinders feature anodized surfaces that are designed to be easy to clean. This is crucial for packaging applications in the food industry, where maintaining cleanliness and hygiene is essential. The anodised surfaces ensure efficient and simple cleaning, reducing maintenance efforts.
2

Key Features

These cylinders are suitable for food applications as they are approved for use with NSF-H1 compliant scrapers and lubricants. This ensures that the components used in the cylinders meet food industry standards for safety and sanitation.
3

Key Features

The cylinders come with hygienic protective caps for any unused mounting holes. This feature helps prevent contamination and maintains the cleanliness of the system, which is particularly important in food packaging applications.

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Functional Principle: Double-acting
Ambient Temperature Range: -20°C to 80°C
Working Pressure Range: 1.5 - 10 Bar
Maximum Particle: 50 µm
Medium: Compressed Air
Standards: ISO 15552
Ports: G 1/8 G 1/4 G 3/8 G 1/2
Stroke Range: 25 - 500
Bore Diameter: Ø 25-125 mm

FAQs

CCL-IS Standard Type Cylinders are a specific type of hydraulic or pneumatic cylinders designed to meet certain industry standards and specifications. They differ from other cylinders in terms of their construction, dimensions, and performance characteristics.

CCL-IS Standard Type Cylinders are widely used in various industries, including manufacturing, automotive, construction, and aerospace, where precise linear motion and force are required.

CCL-IS Standard Type Cylinders are known for their robust construction, high reliability, and compliance with industry standards. They often come with integrated safety features and options for customisation.

To select the right cylinder, consider factors such as load capacity, stroke length, operating pressure, and environmental conditions. Consulting with a professional engineer or supplier can also help you make an informed choice.

Proper maintenance involves regular inspection, cleaning, and lubrication. It's essential to follow the manufacturer's guidelines and replace any worn-out components promptly.

Yes, safety is paramount. Ensure that cylinders are properly mounted, and all safety measures are in place. Follow recommended operating procedures and never exceed the cylinder's rated capacity.
