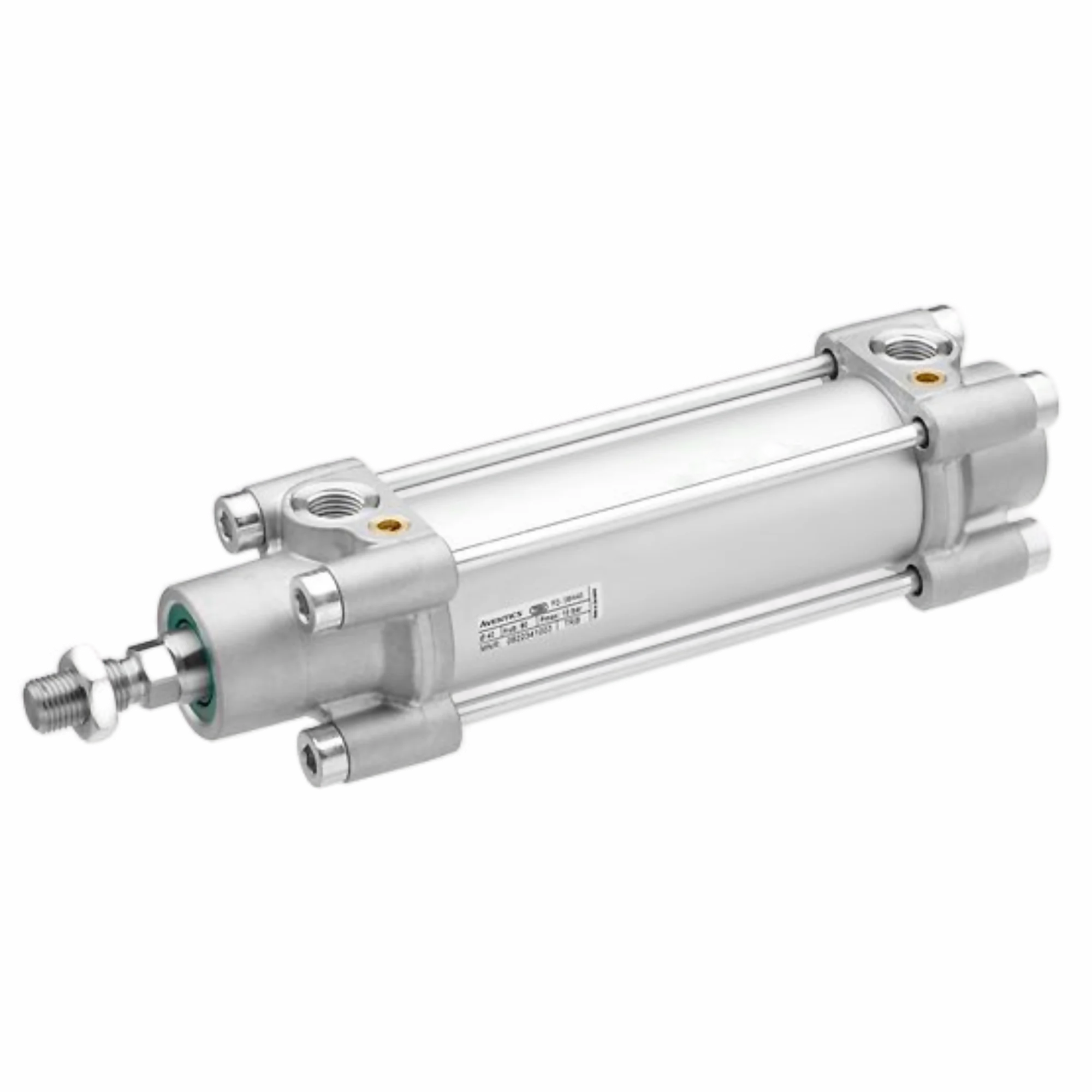

The Pneumatic Tie Rod Cylinders TRB Series are a range of pneumatic actuators designed for various industrial applications. These cylinders offer reliable and efficient performance, making them suitable for tasks requiring linear motion control. With a focus on durability and functionality, the TRB Series provides a cost-effective solution for automation needs in manufacturing and assembly processes.

Shop Help Me

Key features and benefits of the Pneumatic Tie Rod Cylinders TRB Series

Key Features

The TRB Series cylinders are designed to withstand the rigors of heavy-duty applications in industries like wood and aluminium processing, steel manufacturing, automotive production, heavy machinery, and mining. This indicates their robust construction and durability to handle demanding tasks.

Key Features

These cylinders adhere to the ISO 15552 standard, ensuring consistency and compatibility with international pneumatic cylinder specifications. ISO 15552 sets the standards for dimensions and performance, providing users with a reliable and standardised solution for their industrial needs.

Key Features

The TRB Series cylinders find application across a wide range of industries, highlighting their versatility. This versatility implies that they are adaptable to various tasks and environments, making them a practical choice for businesses with diverse industrial needs.

Range of Cylinders

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.


Functional Principle:	Double-acting
Ambient Temperature Range:	-20°C to 80°C
Working Pressure Range:	1.5 - 10 Bar
Maximum Particle:	50 µm
Medium:	Compressed Air
Standards:	ISO 15552
Ports:	G 1/8 G 1/4 G 3/8 G 1/2
Stroke Range:	25 - 500
Bore Diameter:	Ø 32-125 mm

A Pneumatic Tie Rod Cylinder TRB Series is a type of pneumatic actuator designed for linear motion control. It is commonly used in industrial applications, such as manufacturing, automation, and material handling.

The TRB Series offers features like high durability, precision machining, corrosion resistance, and easy maintenance. It is also available in various bore sizes and stroke lengths.

TRB Series cylinders use compressed air to create linear motion. When air pressure is applied to one end of the cylinder, it pushes a piston, which is connected to a rod, creating the desired movement.

TRB Series cylinders provide cost-effective and reliable motion control, with advantages like high force output, quick response times, and the ability to operate in harsh environments.

TRB Series cylinders can be mounted in various ways, including flange, pivot, and foot mounts, to suit different installation requirements.

Regularly lubricate moving parts, inspect seals for wear and tear, and ensure clean compressed air to extend the life of TRB Series cylinders.

In this guide, we delve into the world of tie rod pneumatic cylinders, essential components in industrial automation. Click the following link to learn more today.

Learn More

Catalogue

Manuals, Datasheets and Certificates

Please feel free to request information and advice using the form below or call us on 0151 547 1221
