ISO 15524

The Emerson ISO 15524 Standard cylinders outlines a meticulous metric series encompassing single-rod pneumatic short-stroke cylinders, meticulously crafted to cater to precise operational needs. These cylinders stand out as purpose-built components, intricately designed to deliver optimum performance and reliability within well-defined parameters. Their engineering is tailored to address applications where exacting precision and unwavering reliability are imperative, ensuring that they meet the stringent demands of various industrial contexts. This standardisation underscores Emerson's commitment to providing a versatile and dependable solution for pneumatic systems requiring a specific range of capabilities.

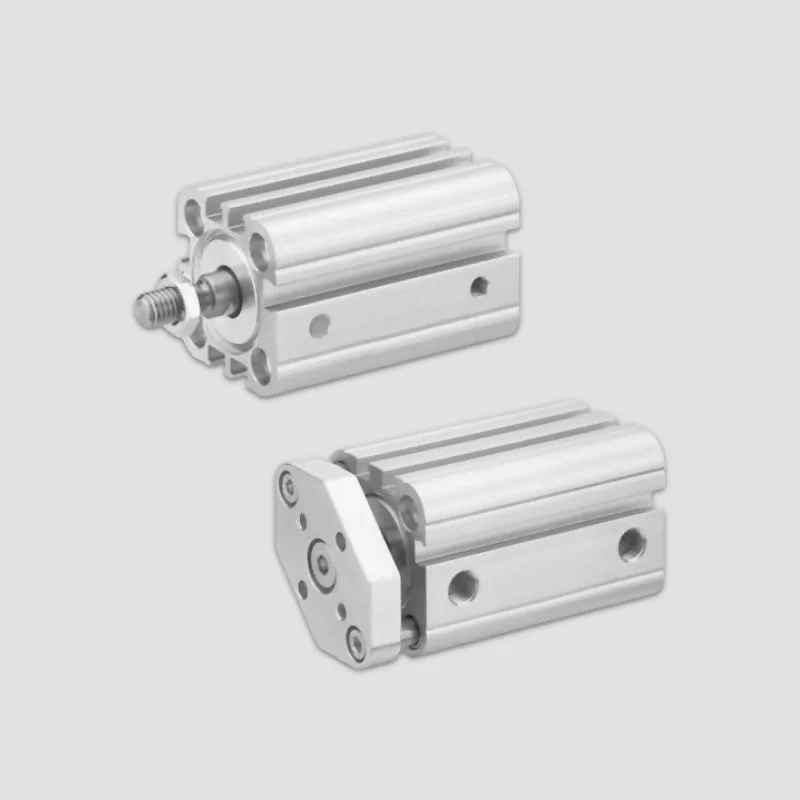

CCI Series

AVENTICS™ CCI Compact Cylinders feature a durable aluminum housing with integrated covers for easy maintenance. They have minimal length tolerance, ideal for tight machine spaces. Sensor installation is straightforward, and customization options include special strokes, hollow piston rods, heat resistance, and more. Available in piston diameters from 16 mm to 100 mm, these cylinders suit various needs for efficient performance.

Standards: ISO 21287
Compressed Air Connection: Internal Thread
Temperature Range: -20°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Stainless Steel, & Polyurethane
Find Out More

General Information

ISO 15524 Pneumatic Cylinders (Short-Stroke Cylinders)

Emerson ISO 15524 Pneumatic Cylinders are designed to meet a metric-based standard for single-rod, short-stroke applications. These cylinders offer compact, high-precision actuation tailored for environments where space is limited but performance cannot be compromised.

Engineered with robust construction and tight tolerances, ISO 15524 cylinders are ideal for systems requiring fast, repeatable motion with minimal stroke length. They deliver exceptional reliability and consistency, making them well-suited to industries such as assembly automation, testing equipment, and light-duty pressing applications.

By adhering to a standardised format, ISO 15524 cylinders allow for streamlined integration into existing pneumatic systems, offering both versatility and reduced installation complexity. Emerson’s commitment to quality ensures that these short-stroke cylinders meet the demands of precision engineering while maintaining operational efficiency.

FAQ'S

1. What is an ISO 15552 pneumatic cylinder?
An ISO 15552 pneumatic cylinder is a standardised profile cylinder designed with mounting and dimensional specifications that ensure full interchangeability with other ISO 15552-compliant cylinders. It’s commonly used in industrial automation for medium to heavy-duty tasks.


2. What sizes are available in ISO 15552 cylinders?
ISO 15552 cylinders are available in a wide range of bore sizes from 32 mm to 320 mm, allowing for greater force output and suitability in more demanding industrial applications.


3. What’s the difference between ISO 15552 and ISO 6431?
ISO 15552 is the updated and more precise version of ISO 6431. It includes more refined tolerances and mounting specifications but maintains backward compatibility, making it ideal for both new systems and upgrades.


4. What industries use ISO 15552 cylinders?
They are widely used in automotive, packaging, material handling, machine tools, food & beverage, and general automation where robust and reliable actuation is required.


5. What pressure can ISO 15552 cylinders handle?
These cylinders are typically rated for a maximum working pressure of 1,000 kPa (10 bar), suitable for a broad range of industrial pneumatic systems.
