ISO 6432

Emerson's adherence to the ISO 6432 Standard for Pneumatic Cylinders underscores a commitment to precision and interchangeability within the realm of pneumatic systems. This standard, established in 2015, meticulously outlines a metric series of mounting dimensions, creating a universal framework that facilitates seamless interchangeability among commonly used pneumatic cylinders.

MNI Series

The AVENTICS™ Series MNI Mini cylinders boast a sturdy and compact design, ensuring space efficiency in various applications. These cylinders are renowned for their exceptional durability, promising a prolonged service life. With piston diameters ranging from 10 mm to 25 mm, they offer versatility to meet different requirements. The configurations are diverse, including options for single or through piston rod, elastic or adjusted cushioning, magnetic detection or without, and non-rotating piston rod. Additionally, ATEX compliance ensures safety in potentially explosive environments. Choose AVENTICS™ Series MNI Mini cylinders for reliable, adaptable, and long-lasting performance.

Standards: ISO 6432
Working Pressure Range: 2 - 10 Bar
Temperature Range: -25°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Stainless Steel, Brass (Aluminium), Aluminium (Anodised), Steel (Galvanised), & Polyurethane
Find Out More

CSL-RD Series

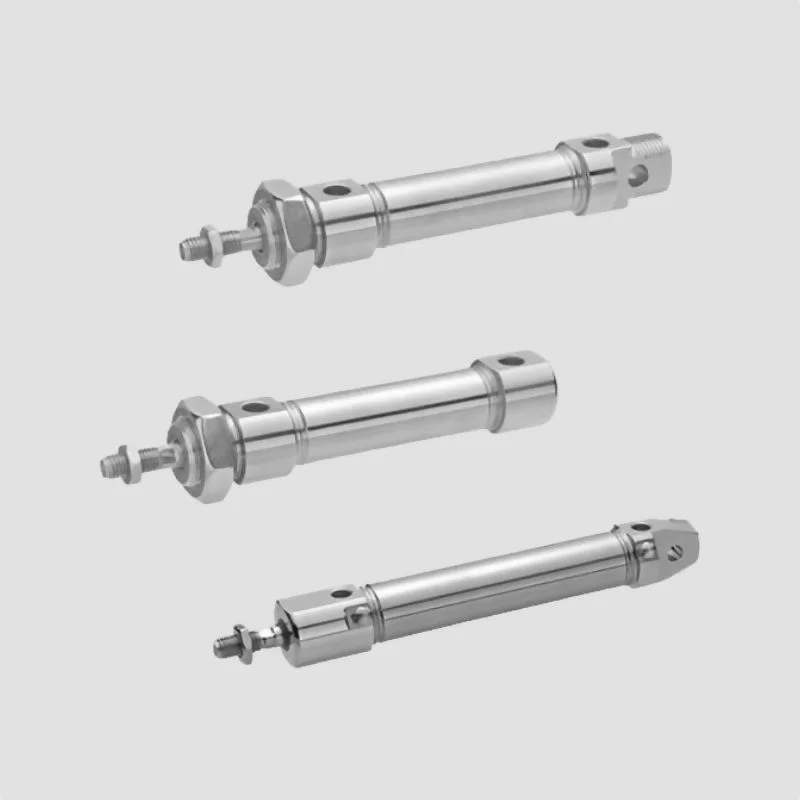

The AVENTICS™ Series CSL-RD Stainless Steel Round Cylinders feature a clean and compact design that ensures optimal performance. With undercut-free scrapers, these cylinders prevent the buildup of dirt and eliminate dead spaces around the piston rod, promoting cleanliness and efficiency. These cylinders are guaranteed to meet food safety standards and are resistant to various chemicals. They offer a range of piston diameters from 16 mm to 63 mm, catering to diverse industrial needs. Additionally, you can choose from various configurations, including single piston rod, elastic, pre-adjusted, or manual adjusted cushioning, and magnetic detection options. These cylinders are also available in ATEX-certified versions, ensuring safety in potentially explosive environments.

Version: ISO Model
Working Pressure Range: 1 - 10 Bar
Temperature Range: -20°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 bar
Materials: Stainless Steel (Electropolished), Aluminium, Nitrile Butadiene Rubber, TPU, & Plastic
Find Out More

ICM Series

The AVENTICS™ Series ICM Mini cylinders range from 8 to 32 mm in diameter, with a maximum stroke of 400 mm. These cylinders are highly corrosion-resistant, making them ideal for use in demanding environments, including food processing applications. Their robust design and precise engineering ensure reliable performance in various industrial settings. Choose AVENTICS™ Series ICM Mini cylinders for dependable and durable solutions in your operations.

Medium: Compressed Air
Working Pressure Range: 3 - 10 Bar
Temperature Range: -25°C to 70°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Stainless Steel, Polyoxymethylene, Acrylonitrile Butadiene Rubber, & Polyamide
Find Out More

FAQ'S

1. What is an ISO 6432 pneumatic cylinder?
An ISO 6432 pneumatic cylinder is a compact, round-body actuator designed according to ISO 6432:2015 standards. It ensures consistent mounting and dimensional compatibility with other ISO 6432 cylinders, making it easy to replace or integrate into new systems.


2. What bore sizes are available in ISO 6432 cylinders?
ISO 6432 cylinders typically come in bore sizes ranging from 8 mm to 25 mm, making them ideal for light-duty automation where space is limited.


3. What materials are used in ISO 6432 cylinders?
These cylinders are commonly constructed with stainless steel barrels and piston rods, offering excellent corrosion resistance, especially in environments like food processing, pharmaceuticals, and laboratory equipment.


4. What pressure can ISO 6432 cylinders handle?
ISO 6432 cylinders are designed to operate at a maximum working pressure of 1,000 kPa (10 bar), suitable for most general-purpose pneumatic applications.


5. Where are ISO 6432 cylinders commonly used?
They are widely used in compact automation systems, including packaging machines, medical devices, lab equipment, and light material handling—anywhere a small, reliable actuator is needed.
