Pneumatic Guide Type Cylinders MSC Series

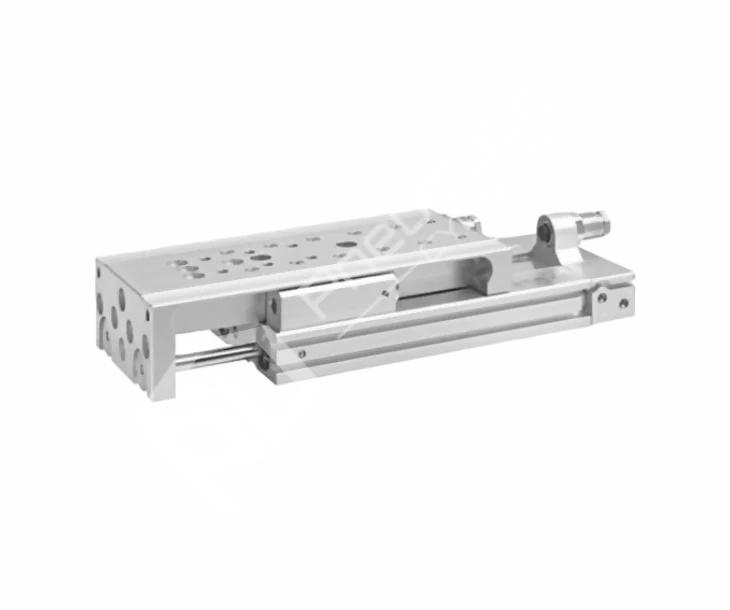

MSC Mini Type Cylinders, available with a diameter range of Ø 8-25 mm, these double-acting cylinders feature a magnetic piston and elastic cushioning for optimal performance. With an Easy2Combine capability and a unique double piston design, these cylinders feature an integrated "High Performance" ball rail system. The scope of delivery includes centering rings, ensuring a comprehensive package. Operating within a temperature range of 0 to 60 °C, and designed for compressed air with a max particle size of 5 µm and an oil content of 0 to 1 mg/m³, these cylinders offer versatility. The working pressure, as detailed in the table below, ensures reliable functionality, making them ideal for various applications.

Key Features

Key features and benefits of the MSC Guide Type Cylinders.
1

Key Features

Benefit from the advanced design of these cylinders, featuring a double-acting mechanism for enhanced operational efficiency.
2

Key Features

The integrated ball rail system sets these cylinders apart, providing superior performance and durability.
3

Key Features

Offering versatility in applications, the Easy2Combine capability ensures seamless integration and adaptability in various setups.

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Functional Principle: Double-acting
Ambient Temperature Range: 0°C to 60°C
Working Pressure Range: 1 - 10 Bar
Maximum Particle: 5 µm
Medium: Compressed Air
Stroke Range: 125 - 200
Bore Diameter: Ø 16-25 mm

FAQs

MSC Guide Type Cylinders are a type of pneumatic or hydraulic actuator that use mechanical guides to provide precise linear motion control. They operate by converting fluid pressure into linear force, allowing for controlled movement in various applications.

These cylinders are commonly used in industrial automation, machine tools, material handling equipment, and other applications where precise and controlled linear motion is required.

MSC Guide Type Cylinders offer high precision, repeatability, and stability in motion control. They are also known for their durability and long lifespan, making them a reliable choice for many industries.

Yes, these cylinders come in various sizes and configurations to accommodate different application requirements. You can choose from different bore sizes, stroke lengths, and mounting options to suit your specific needs.

To select the appropriate cylinder, consider factors such as the required force, stroke length, operating environment, and mounting options. Consulting with one of our experts can help you make the right choice.

Pneumatic Guide Cylinders: An In-Depth Exploration

Discover the benefits, maintenance, and safety of Pneumatic Guide Cylinders for efficient industrial applications. Click the link below to begin reading today.
Learn More
