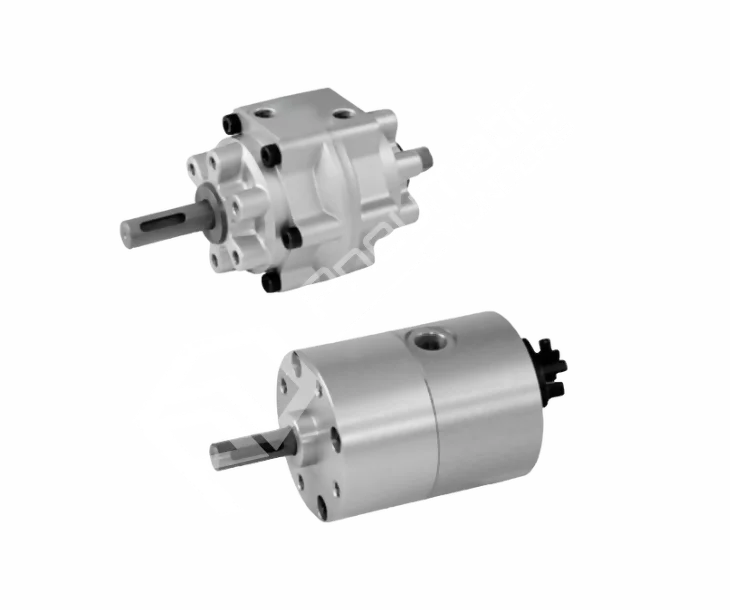

Pneumatic Rotary Type Actuators RAK Series

RAK Rotary Type Cylinders, also known as rotary wind drives, designed for precise control with a maximum angle of rotation ranging from 90 to 270 degrees. Featuring a double-acting Rotary wing drive and single-axis geometry, these cylinders ensure optimal performance within a working pressure range specified in the accompanying table. Operating seamlessly in ambient temperatures outlined in the table, these cylinders accommodate medium temperatures from -5 to 60 °C, making them ideal for a variety of applications. Utilising compressed air as the medium with a maximum particle size of 5 µm and an oil content range of 0 to 1 mg/m³, these cylinders boast efficiency. The Theoretical torque at 6 bar adds to their reliability, offering a dynamic solution for diverse industrial needs.

Key Features

Key features and benefits of the RAK Rotary Type Cylinders.
1

Key Features

With a maximum angle of rotation spanning from 90 to 270 degrees, the RAK Rotary Type Cylinders provide flexibility and adaptability in controlling movement.
2

Key Features

Equipped with a double-acting Rotary wing drive, these cylinders ensure precise and responsive operation, contributing to enhanced performance in various applications.
3

Key Features

Engineered to operate flawlessly within a temperature range of -5 to 60 °C, these cylinders exhibit resilience in diverse environmental conditions, making them a reliable choice for industrial settings.

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Functional Principle: Rotary wing drive, double-acting
Ambient Temperature Range: -5°C to 60°C
Working Pressure Range: 2 - 10 Bar
Maximum Particle: 5 µm
Medium: Compressed Air

FAQs

RAK Rotary Type Cylinders are mechanical devices used in various industrial applications to convert linear motion into rotary motion. They typically consist of a piston or rod that rotates when pressure is applied to it, allowing for controlled rotational movement.

RAK Rotary Type Cylinders find applications in industries such as manufacturing, automation, robotics, and conveyor systems, where precise and controlled rotational movement is required.

RAK Rotary Type Cylinders offer benefits like high precision, efficient power transmission, compact design, and the ability to automate complex tasks, leading to increased productivity and reduced operational costs.

To select the appropriate RAK Rotary Type Cylinder, consider factors such as the required torque, speed, mounting options, and environmental conditions. Consulting with a specialist or manufacturer is recommended for tailored guidance.

Regular maintenance includes lubrication, inspection for wear and tear, and cleaning. Following the manufacturer's guidelines and scheduling routine checks can extend the lifespan of your cylinders.
