Rodless Cylinders

Rodless cylinders are innovative linear motion devices widely used in various industries. These cylinders provide efficient and space-saving solutions for linear motion applications, offering versatility and reliability in automated systems. They eliminate the need for a traditional rod, making them ideal for compact setups where space is limited. Rodless cylinders play a pivotal role in automation, facilitating smooth and precise movements for a wide range of industrial processes.

Key Features

Key features and benefits of Rodless Cylinders
1

Key Features

Rodless cylinders come in a wide range of variants and options, allowing for custom configurations that are individually tailored to specific applications. This versatility means that they can be adapted to meet various operational requirements, including stroke length, speed, and force.
2

Key Features

The integration of a one-piece slide and piston in rodless cylinders enhances their stability. This design feature ensures smoother operation and increased precision in movement, which is particularly beneficial in applications requiring exact positioning and control.
3

Key Features

The oval-shaped piston in rodless cylinders allows for the handling of higher loads and torques compared to traditional round pistons. This design enables the transmission of greater force, making these cylinders suitable for applications requiring substantial mechanical work.

RTC Series

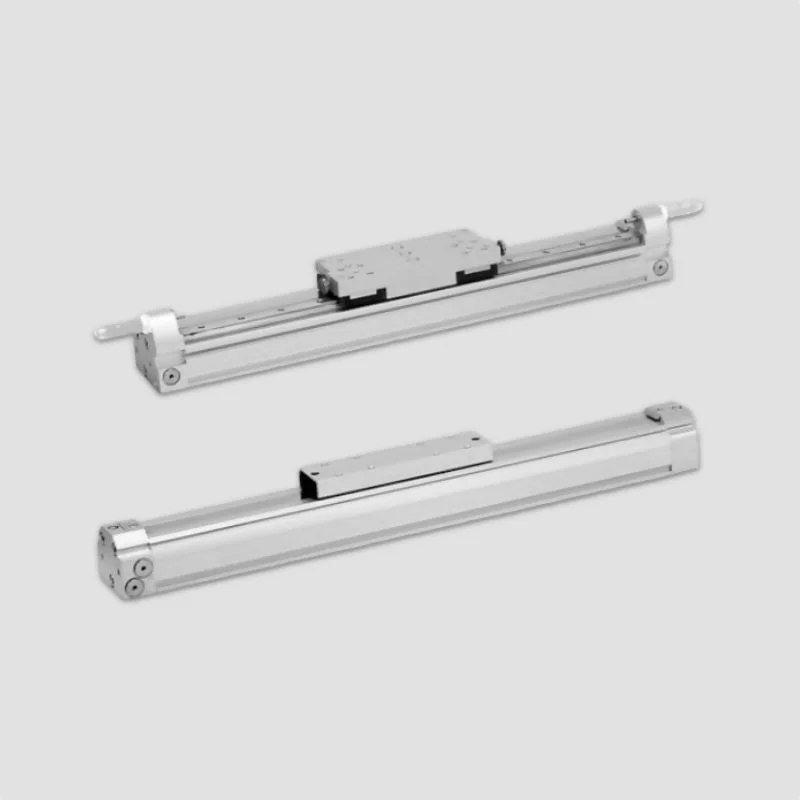

The AVENTICS™ Series RTC Rodless cylinders offer superior performance with their innovative oval piston, allowing for increased loads and torques while maintaining a remarkably compact design. This comprehensive product range boasts numerous variants and customisation options, ensuring that you can tailor the cylinder precisely to your application's needs. The one-piece slide and piston design enhance stability, while the special internal sealing strip and grease guarantee minimal leakage and a versatile range of operating speeds. These cylinders are a top choice for those seeking efficiency and flexibility in their pneumatic systems.

Medium: Compressed air
Working Pressure Range: 2 - 8 Bar
Temperature Range: -10°C to 60°C
Maximum Particle Size: 5 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Polyurethane, & Polyurethane Stainless Steel
Find Out More

CKP Series

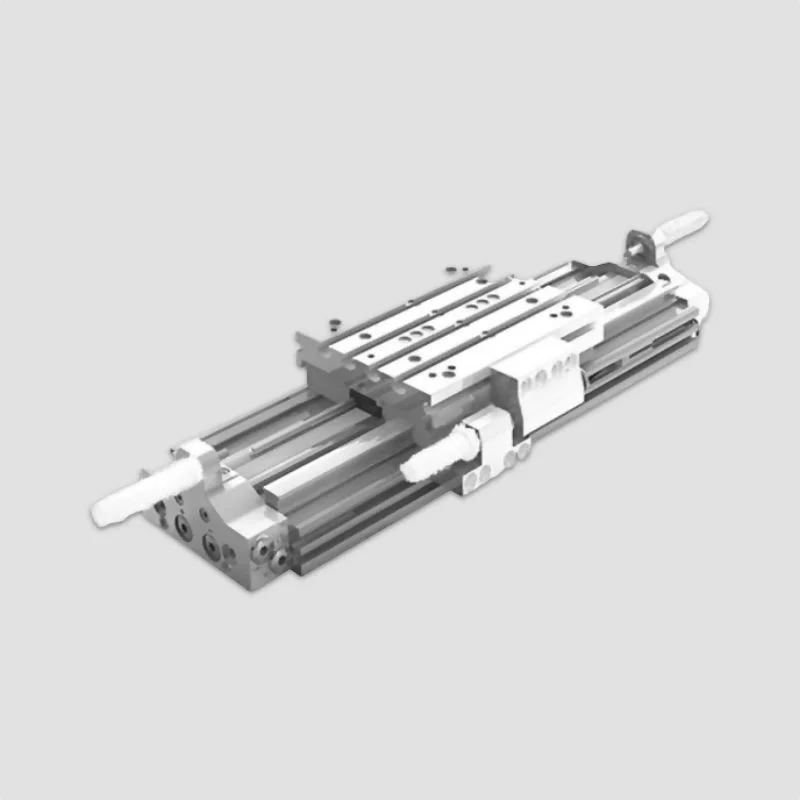

The AVENTICS™ Series CKP Rodless cylinders offer a compact design with the perfect stroke length, ensuring optimal performance. These cylinders boast a high load capacity thanks to the inclusion of two linear guides that provide clearance-free operation. With a one-piece profile solution and an Easy-2-Combine interface, these cylinders are not only efficient but also easy to integrate into your systems. Additionally, the CKP series provides stroke adjustment flexibility, making it a versatile choice for various applications.Upgrade your machinery with these high-quality rodless cylinders for reliable and space-saving performance.

Medium: Compressed Air
Working Pressure Range: 3 - 8 Bar
Temperature Range: -10°C to 60°C
Maximum Particle Size: 5 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Polyurethane, Polyurethane Stainless Steel, Steel (Hardened)
Find Out More

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Manuals, Datasheets and Certificates

  • PDF
Manuals, Datasheets and Certificates

Rodless Cylinders
  • PDF
Manuals, Datasheets and Certificates

Instruction Manual
  • PDF
Manuals, Datasheets and Certificates

Declaration of Conformity
  • PDF
Manuals, Datasheets and Certificates

Cylinder Overview
  • PDF
Manuals, Datasheets and Certificates

Machine Automation
  • PDF
Manuals, Datasheets and Certificates

Cylinder Same Day Dispatch

Rodless Cylinders: The Future of Efficient Motion Control

This article explores the wide spectrum of rodless cylinders, a crucial element in modern machinery and automation systems. For further insights into Pneumatic Rodless Cylinders, please click below.
Learn More

Frequently Asked Questions

Pneumatic Rodless Cylinders are mechanical devices used to convert compressed air energy into linear motion. They eliminate the need for a traditional piston rod and utilize a magnetic band to move the load along the cylinder's body.

Pneumatic Rodless Cylinders offer several advantages, including reduced space requirements, improved load stability, and the ability to handle longer strokes. They are also suitable for high-speed applications and can withstand harsh environments.

Various industries, such as manufacturing, automotive, packaging, and material handling, frequently employ Pneumatic Rodless Cylinders due to their versatility and efficiency.

Choosing the correct Pneumatic Rodless Cylinder involves considering factors such as load weight, stroke length, speed requirements, and environmental conditions. Consulting with a pneumatic system expert can help in selecting the appropriate model.

Regular maintenance, including lubrication and periodic inspections, is crucial to ensure the longevity and optimal performance of Pneumatic Rodless Cylinders. Lubrication intervals and procedures may vary depending on the specific model and application.

Yes, many manufacturers offer customisation options to tailor Pneumatic Rodless Cylinders to meet unique application needs. Customisation may include stroke length adjustments, mounting options, and special materials for harsh environments.

Safety is paramount when working with any pneumatic equipment. Proper installation, regular inspections, and adherence to safety guidelines are essential to prevent accidents and ensure operator safety.

Pneumatic Rodless Cylinders can be energy-efficient when used correctly, as they only consume compressed air when in operation. However, the overall efficiency depends on factors like system design and control.

Pneumatic Rodless Cylinders can be controlled manually, electronically, or through programmable logic controllers (PLCs). The choice of control method depends on the specific application requirements.

The lifespan and reliability of Pneumatic Rodless Cylinders vary depending on usage, maintenance, and environmental conditions. When properly maintained, they can have a long service life and provide consistent performance.

Pneumatic Rodless Cylinders offer advantages such as simplicity, cost-effectiveness, and suitability for specific applications. However, the choice between pneumatic, hydraulic, or electric actuators depends on factors like load capacity and precision.
